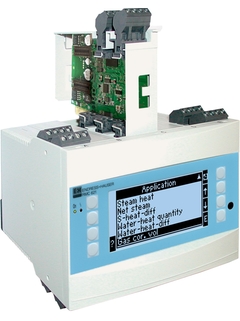

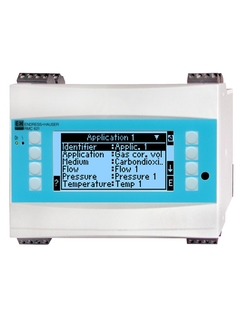

RMC621
Flow and energy manager

Universal flow and energy computer for gases, liquids and steam

RMC621

Compare

Specs at a glance

Input

2...8x PFM
2...8x I
2...8x Impulse (aktiv)
2...6x RTD
2...8x Impulse (passiv)
Output

3...9x transmitter power supply
Display

LC-Dot-Matrix 160 x 80 Punkte
Calculations

mass/heat quantity
heat quantity difference
for gases: standard volume, heating value, mass

See all specifications

Field of application

The flow and energy manager RMC621 calculates standard volume as well as mass and energy flows of natural and technical gases, fluids and steam from flow, pressure, temperature and density. Depending on the medium calculation of the energy values occurs according to international standards (IAPWSIF97, SGERG88), real gas equations (SRK) or specific tables. For differential pressure measurements coefficients for flow compensation are calculated over the complete operating range of the flow sensor.

Energy management
Chemical industry
Heating and air conditioning
Pharmaceutical industry
Food and beverage
Plant and panel manufacture
Oil + petrochemicals

Benefits

Suitable for applications with gas, liquid, steam and water
Simultaneous calculation of up to 3 measuring applications, even if different fluids are used
Very precise process calculations (density, enthalpy, compressibility) on the basis of equations and/or storable tables with material data
Calculation standards: IAPWS-IF 97, SGERG88, AGA8, real gas equations (SRK, RK), ISO 5167, tables
Can be used with all common flow measuring systems (vortex, turbine, MID, orifice plate, differential pressure, etc.)
Compensation input for density signal
Logbook function for error messages and parameter changes with date and time
