Specs at a glance
-
Accuracy
class 1 acc. to IEC 60584
class Special ASTM E230 and ANSI MC 96.1
IEC60751 Class A
IEC60751 Class AA -
Response time
depending on configuration:
TC:
t50 = 21 s
t90 = 52 s
RTD:
t50 = 42 s
t90 = 108 s -
Max. process pressure (static)
at 20 °C: 240 bar (3481 psi)
-
Operating temperature range
Type K:
-270 °C ...1.100 °C
(-454 °F ...2.012 °F)
Type J:
-210 °C ...760 °C
(-346 °F ...1.382 °F)
Type N:
-270 °C …1100 °C
(-454 °F ...2.012 °F)
Pt100 WW; 3mm; 316L; -200...600oC
Pt100 TF; 3mm; 316L; -50…400oC -
Max. immersion length on request
up to 15.000,00 mm (590'')
Field of application

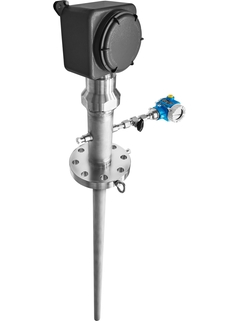

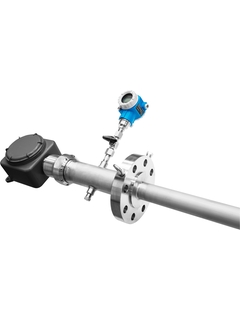

The iTHERM TMS12 MultiSens Linear multipoint thermometer for oil & gas and chemical applications can be customized for various scenarios in compliance with the highest safety standards. It increases process safety by creating detailed linear temperature profiles and features a diagnostic chamber to contain and monitor leakages through the primary seals. Easy process integration reduces installation time and thus maximizes plant availability.
Oil & Gas industry
Heavy chemical processes
Petrochemical industry
Benefits
-
Primary thermowell for superior mechanical strength and an easy replacement of individual inserts, which are available either with TC or RTD technology
-
Increased safety thanks to a diagnostic chamber able to contain the process in the event of leakages through the primary seals
-
Compliance to various safety standards (such as but not limited to ATEX, PED), electrical and Pressure Directive for easy process integration
-
High degree of customization thanks to a modular product design for maximum flexibility, easy installation and maintenance
-
On board electronic heat protection for long product lifetime
-
Superior mechanical strength and sensors replaceability thanks to a primary thermowell
Videos
13 documents
-
-
Technical Information (TI)
iTHERM TMS12 MultiSens Linear
Modular TC and RTD multipoint with primarythermowell (with diagnostic chamber)
EN 21/10/201904/05/2018Language:
English
Version:
21/10/2019
File size:
1.3 MB
File name:
