Brand: Endress+Hauser
Availability: InStock

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Predecessor

Micropilot S FMR530

Micropilot S FMR533

Measuring principle

Level radar
Characteristic / Application

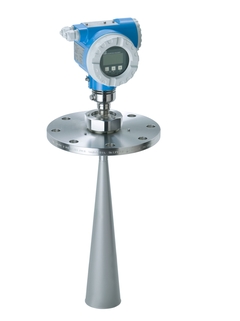

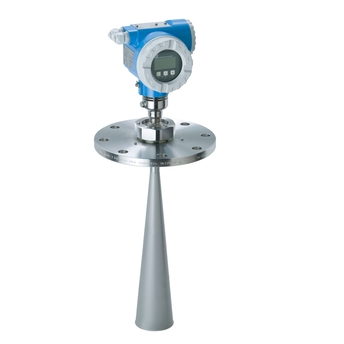

Horn antenna:
High precision measurement for for storage tanks up to 20 m (65ft)

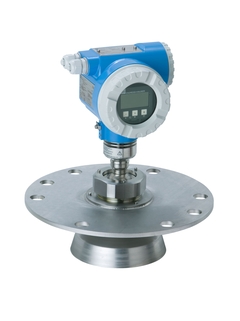

Parabolic antenna:
High precision measurement for free space applications up to 40 m (131 ft)
Supply / Communication

4-wire (HART)
Frequency

K-band (~26 GHz)
Accuracy

+/- 1 mm
Ambient temperature

Standard:
-40°C...80°C
(-40°F...176°F)
For calibration to regulatory standards:
-25°C...60°C
(-13°F...131°F)
Process temperature

-40°C...200°C
(-40°F...392°F)
Process pressure / max. overpressure limit

Horn: Vacuum...16 bar (232 psi)
Parabolic: Vacuum...6 bar (87 psi)
Use of UNIflange: Vacuum...1 bar (14.5 psi)
Main wetted parts

316L
Process connection

Horn Antenna: DN100, DN150 Flange
UNIFlange DN150, DN200, DN250
Parabolic antenna: UNIflange with Top Target
positioner DN200, DN250
For dk value < 1.9, contact Endress+Hauser
Communication

4...20 mA HART
Certificates / Approvals

ATEX, FM, CSA, IEC Ex, NEPSI
Application limits

Maximum measuring range is dependent on the tank form and/or application
Strong condensate or build-up formation
FMR53x
Existing stilling wells with non-ideal measuring conditions
FMR532

Filter

Search spare parts by number in drawing

60 spare parts & accessories

Cover F12/T12 Alu, window, gasket

Cover

Drawing number

Order code

20

52005936
Cover T3/T12 Alu, coated, gasket

Cover

Drawing number

Order code

25

518710-0020
O-ring 113.9x3.63 EPDM, 5 pieces

further parts

Order code

71092209
Electronics FMR540, Ex, HART, HF-module

Electronic

Drawing number

Order code

30

FMR54X1-
Terminal module 5-pole, Ex i, FMR53x/540

Terminal module

Drawing number

Order code

35

71020581
Terminal module 5-pole, Ex d, FMR540

Terminal module

Drawing number

Order code

35

71020582
Display VU331, version 2

Display

Drawing number

Order code

40

52026443
Horn FMR250/540,100mm/4",length 430mm,SS

Antenna module

Drawing number

Order code

55

71020169
Parabolic reflector 197x25, 316L

Antenna module

Drawing number

Order code

55

52025233
Parabolic reflector 173x60, 316L

Antenna module

Drawing number

Order code

55

71090287
Parabolic reflector 236x88, 316L

Antenna module

Drawing number

Order code

55

71090289
Adapter cable FMR2xx/53x, FMU4x, FMP4x

further parts

Order code

52007441
Tool for unplugging the antenna cable

further parts

Order code

52007646
ToF Adapter FXA291

further parts

Order code

71007843
HF-test cable 6GHz

further parts

Order code

71006590
HF-test cable 6GHz + resistor

further parts

Order code

52028063
HF-test cable 26GHz

further parts

Order code

52009925
Sealing kit FMR5xx

Sealing

Drawing number

Order code

65

52005628

	EN
13/08/2014
07/02/2014
21/10/2009
01/04/2009
11/12/2006

Language:	English
Version:	13/08/2014
File size:	3.3 MB
File name:	BA00341FEN_1414.pdf

Language:	English
Version:	03/04/2008
File size:	2.7 MB
File name:	TI419FEN_05.08.pdf

	EN
09/12/2016
10/05/2016
13/08/2014
07/02/2014
30/11/2010

Language:	English
Version:	09/12/2016
File size:	1.3 MB
File name:	TI00412FEN_1716.pdf

	EN
03/04/2008

	EN
21/10/2009
14/02/2008
28/11/2006
22/09/2006

	EN
13/05/2015

	EN
22/09/2006

Micropilot S FMR540

Predecessor

Measuring principle

Characteristic / Application

Supply / Communication

Frequency

Accuracy

Ambient temperature

Process temperature

Process pressure / max. overpressure limit

Main wetted parts

Process connection

Communication

Certificates / Approvals

Application limits

Back

Micropilot S FMR540 HART

Tankvision NXA820, NXA821, NXA822

Micropilot S FMR540 Technical Information

Micropilot S FMR540 HART

Micropilot S FMR540 HART Operating Instructions

Micropilot S FMR540

Installation instruction - electronics, terminal module

Micropilot S FMR540

Micropilot S FMR540 HART Brief Operating Instructions

Micropilot S - sealing set

Micropilot S - exchange of housing T12

Back

Cover F12/T12 Alu, window, gasket

Cover T3/T12 Alu, coated, gasket

O-ring 113.9x3.63 EPDM, 5 pieces

Electronics FMR540, Ex, HART, HF-module

Terminal module 5-pole, Ex i, FMR53x/540

Terminal module 5-pole, Ex d, FMR540

Display VU331, version 2

Horn FMR250/540,100mm/4",length 430mm,SS

Parabolic reflector 197x25, 316L

Parabolic reflector 173x60, 316L

Parabolic reflector 236x88, 316L

Adapter cable FMR2xx/53x, FMU4x, FMP4x

Tool for unplugging the antenna cable

ToF Adapter FXA291

HF-test cable 6GHz

HF-test cable 6GHz + resistor

HF-test cable 26GHz

Sealing kit FMR5xx
