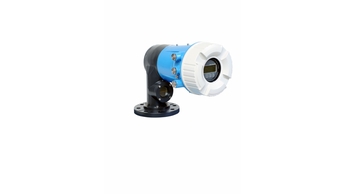

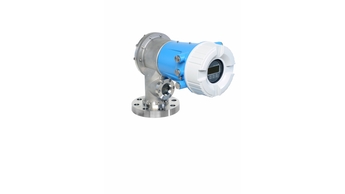

Successor
High precision servo measurement for liquid level, interface and density
Read more
High precision servo measurement for liquid level, interface and density
Read more
Simple products
Easy to select, install and operate
Technical excellence
Simplicity
Standard products
Reliable, robust and low-maintenance
Technical excellence
Simplicity
High-end products
Highly functional and convenient
Technical excellence
Simplicity
Specialized products
Designed for demanding applications
Technical excellence
Simplicity
FLEX selections
Technical excellence
Simplicity
Fundamental selection
Meet your basic measurement needs
Technical excellence
Simplicity
Lean selection
Handle your core processes easily
Technical excellence
Simplicity
Extended selection
Optimize your processes with innovative technologies
Technical excellence
Simplicity
Xpert selection
Master your most challenging applications
Technical excellence
Simplicity
Characteristic / Application
High precision measurement for liquid level, interface, density
Supply / Communication
85-264 VAC
Ambient temperature
Standard:
Process temperature
-200 °C ... 200 °C
Process pressure / max. overpressure limit
0.2 bar g ... 25 bar
Max. measurement distance
Standard: maximum 47 m (154 ft)
Communication
4 ... 20 mA HART
Certificates / Approvals
ATEX, FM, CSA, IEC Ex, TIIS, NEPSI
Application limits
Stilling well or guide wires for turbulent application
Most downloaded
Proservo NMS 53x Operating Instructions
English version - 11/2004
High accuracy servo level gauge based on the principle of displacement
measurement
Language:
English
Version:
01/11/2004
File size:
3.8 MB
File name:
BA001NEN.pdf
MODBUS communication protcol-Proservo NMS5
English version - 07/2007
Tank Gauging - MODBUS communication protocol
Language:
English
Version:
01/07/2007
File size:
317.1 KB
File name:
KA002N08en07.07.pdf
61 documents
Proservo NMS5 - Technical Information
• SIL2 Certified
EN
French Japanese Russian Chinese
02/06/2016
23/12/2015
05/09/2014
07/01/2014
02/10/2013
Language:
English
Version:
02/06/2016
File size:
2.8 MB
File name:
TI00452G08EN08.16.pdf
Tank side monitor
For tank side monitoring and controlling of Proservo NMS 5 intelligent
tank gauge
Remote monitoring and control for Proservo tank gauge
EN
French Japanese Polish
01/07/2009
01/08/2005
Language:
English
Version:
01/07/2009
File size:
738.9 KB
File name:
TI008N08en07.09.pdf
Intelligent tank gauge with high accuracy performance
EN
German French Japanese Polish Russian
01/04/2009
01/09/2005
01/08/2005
Language:
English
Version:
01/04/2009
File size:
1.5 MB
File name:
TI006NEN.pdf
Proservo NMS5/7 series- Operating Instructions
The proservo NMS series ofintelligent tank gauges are designed for high
EN
French Japanese Russian
01/04/2009
Language:
English
Version:
01/04/2009
File size:
5.2 MB
File name:
BA1001N08en04.09.pdf
Proservo NMS 53x Operating Instructions
High accuracy servo level gauge based on the principle of displacement
EN
Czech German Polish
01/11/2004
Language:
English
Version:
01/11/2004
File size:
3.8 MB
File name:
BA001NEN.pdf
Proservo NMS5 - Operating Instructions
Proservo NMS5 of intelligent tank gauge is designed for high-accuracy
EN
French Japanese Russian
02/06/2016
23/12/2015
05/09/2014
07/01/2014
02/09/2013
Language:
English
Version:
02/06/2016
File size:
9.4 MB
File name:
BA00401G08EN08.16.pdf
Promonitor NRF560 Operating Instructions
Tank side monitor for integration and communication with Proservo and
Language:
English
Version:
01/11/2004
File size:
443 KB
File name:
BA003NEN.pdf
MODBUS communication protcol-Proservo NMS5
Tank Gauging - MODBUS communication protocol
Language:
English
Version:
01/07/2007
File size:
317.1 KB
File name:
KA002N08en07.07.pdf
WM550 communication protcol-Proservo NMS5
Tank Gauging - WM550 communication protocol
Language:
English
Version:
01/04/2004
File size:
266.9 KB
File name:
KA001N08en11.04.pdf
Proservo NMS53x Series - Safety Instructions
Safety Instructions for Electrical Apparatus Certified for Use in
EN
Russian
13/05/2015
05/07/2013
18/05/2011
Language:
English
Version:
13/05/2015
File size:
438.5 KB
File name:
XA00582G-C08EN03.15.pdf
Search spare parts by number in drawing
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
O-ring, cover drum housing Alu, NBR
Drawing number
Order code
11
017803-0034
O-ring, cover drum housing Alu, CR
Drawing number
Order code
11
70106019
O-ring, cover drum housing Alu, FKM
Drawing number
Order code
11
70106020
O-ring,cover drum housing Al,silicone
Drawing number
Order code
11
70106021
O-ring, cover drum housing Alu, PTFE
Drawing number
Order code
11
56004345
Measuring wire, 316L, 0.15mm dia., 60m
Drawing number
Order code
53
71273740
O-ring, cover drum housing, SS, FKM
Drawing number
Order code
11
017803-0066
O-ring,cover drum housing SS,silicone
Drawing number
Order code
11
017803-0035
O-ring, cover, drum housing. SS, NBR
Drawing number
Order code
11
70109105
O-ring, drum housing D158-d3.5 CR
Drawing number
Order code
11
70109106
O-ring, drum housing D158-d3.5 PTFE
Drawing number
Order code
11
70109107
O-ring, calibration window, NBR
Drawing number
Order code
11
017803-0033
O-ring, calibration window, CR
Drawing number
Order code
11
70106018
O-ring, calibration window, silicone
Drawing number
Order code
11
017803-0041
O-ring, calibration window, FKM
Drawing number
Order code
11
017803-0036
O-ring, calibration window, PTFE
Drawing number
Order code
11
56004518
O-ring, display cover, HNBR
Drawing number
Order code
11
017803-0030
O-ring, terminal cover, NBR
Drawing number
Order code
11
017803-0040
PTFE packing+ring,calibr.window,Zone0
Drawing number
Order code
11
71070894
Cover, display module, Aluminium
Drawing number
Order code
21
017800-0111
Cover, terminal box, Aluminum, NMS
Drawing number
Order code
21
017800-0112
Cover, drum housing,Alu,NMS531/NMS534
Drawing number
Order code
21
017800-0113
Cover, drum housing, SS, NMS5
Drawing number
Order code
21
56004307
Calibration window, Alu,NMS531/NMS534
Drawing number
Order code
21
56004295
Calibration window, SS, NMS5, O-ring
Drawing number
Order code
21
56004296
Calibration window, SS, NMS536,O-ring
Drawing number
Order code
21
56004297
Calibr.window,SS,Zone0,NMS532/535/536
Drawing number
Order code
21
71070909
Drawing number
Order code
31
70103940
Drawing number
Order code
31
70103942
Drawing number
Order code
31
70103941
Drawing number
Order code
31
70103943
Drawing number
Order code
32
70103937
COM-1, Communication module, V1
Drawing number
Order code
33
017800-0005
Drawing number
Order code
33
52013661
Modbus module RS485, COM-5
Drawing number
Order code
33
71086763
Drawing number
Order code
33
70106270
COM-6 HART,passive remote com.module
Drawing number
Order code
33
56004484
Drawing number
Order code
33
52013651
COM-6 HART,active remote commu.module
Drawing number
Order code
33
56004485
Upgrade kit HART active output
Drawing number
Order code
33
70106039
Communication module WM550, arrestor
Drawing number
Order code
33
56004534
Drawing number
Order code
33
52013662
Communication module Mark Space
Drawing number
Order code
33
56004409
Drawing number
Order code
33
52013658
Communication module ENRAF BPM, COM-3
Drawing number
Order code
33
56004355
Drawing number
Order code
33
52013649
Alarm output, 4x contact, I/O 3
Drawing number
Order code
34
017800-0007
Alarm output,2x contact,I/O 3,TUV OSP
Drawing number
Order code
34
70109108
Drawing number
Order code
35
017800-0017
Drawing number
Order code
35
52013656
Communication module EXI HART, COM-4
Drawing number
Order code
36
56004356
Oper. I./C.O., spot temperature
Drawing number
Order code
37
56004442
Upgrade kit oper. I./C.O., Ex d temp.
Drawing number
Order code
37
70106035
Upgrade kit oper. input/contact out
Drawing number
Order code
37
70106032
Operation input/contact out, carrier
Drawing number
Order code
37
56004441
Drawing number
Order code
37
56004491
Spot temp. input T-AMP Upgrade KIT
Drawing number
Order code
37
56004490
Spot temp. Ex ia, carrier
Drawing number
Order code
37
70106027
Fuse 250VAC T2A50, NMS, 10 pcs.
Drawing number
Order code
40
70106498
Fuse 20-62VDC T3A15, NMS, 10 pcs.
Drawing number
Order code
40
70106499
Drawing number
Order code
40
70106500
Wiring harness,Ter.-COM-1/RS485/BPM
Drawing number
Order code
41
52013660
Wiring harness,Term.-HART passive mod
Drawing number
Order code
41
52013650
Wiring harness,Term.-HART active mod.
Drawing number
Order code
41
70106037
Wiring harness,Termin.-MarkSpace mod.
Drawing number
Order code
41
52013657
Wiring harness, Terminal-I/O-3 module
Drawing number
Order code
41
52013653
Drawing number
Order code
41
52013652
Wiring harness,Terminal-I/O-5 module.
Drawing number
Order code
41
52013655
Wiring harness, Terminal-COM-4 module
Drawing number
Order code
41
70106036
CPU, T-AMP Ex d module cable
Drawing number
Order code
41
70106033
Wiring harness,Terminal-T-AMP Ex d
Drawing number
Order code
41
70106034
Wiring harness,Terminal-T-AMP Ex ia
Drawing number
Order code
41
70105996
CPU, T-AMP Ex ia module cable
Drawing number
Order code
41
70105995
Terminal, noise filter, Exd
Drawing number
Order code
42
56004508
Terminal, noise filter, Exd(ia)
Drawing number
Order code
42
56004509
PCB CPU Carrier set complete, spacer
Drawing number
Order code
43
017800-0015
Display module 4line, 3key optical
Drawing number
Order code
44
70103938
Drawing number
Order code
51
017800-0043
Detector unit NMS, TCC-3, V1
Drawing number
Order code
51
70103944
Wire drum + wire Mes., 28m
Drawing number
Order code
52
56004523
Wire drum, 10/16m PFA>316L, 0.4, FKM
Drawing number
Order code
52
56004524
Wire drum, AlloyC wire, 10/16/22m,FKM
Drawing number
Order code
52
56004520
Drawing number
Order code
52
71114404
Wire drum, 28m wire, silicone
Drawing number
Order code
52
71114405
Wire drum, wire 0.15mm 28m, FFKM
Drawing number
Order code
52
71136789
Wire drum, 10/16m PFA>316L, 0.4, CR
Drawing number
Order code
52
71114406
Wire drum10/16m PFA>316L,0.4,silicone
Drawing number
Order code
52
71114407
Wire drum, AlloyC wire, 10/16/22m, CR
Drawing number
Order code
52
71114408
Wire drum, AlloyC wire, 10/16/22m,VQM
Drawing number
Order code
52
71114409
Drawing number
Order code
52
71133077
Wire drum, 36m wire 316L, CR
Drawing number
Order code
52
71133079
Wire drum, 36m wire 316L, silicone
Drawing number
Order code
52
71133078
Wire drum, wire 0.15mm 36m, FFKM
Drawing number
Order code
52
71136790
Wire drum, wire 0.15mm 47m
Drawing number
Order code
52
71134099
Wire drum, wire 0.15mm 47m, CR
Drawing number
Order code
52
71134100
Wire drum, wire 0.15mm 47m, Silicone
Drawing number
Order code
52
71134101
Drawing number
Order code
52
56004525
Drawing number
Order code
52
56004527
Wire drum bracket SS, Teflon coated
Drawing number
Order code
52
56004526
Bearing, wire drum bracket, PTFE, NMS
Drawing number
Order code
52
017800-0221
5x measuring wire, 16m, d=0.4mm, PTFE
Drawing number
Order code
53
56004256
Measuring wire, 16m, PFA>316L, 0.4 mm
Drawing number
Order code
53
56004912
Drawing number
Order code
53
017800-0243
Drawing number
Order code
53
71134095
Drawing number
Order code
53
71134096
Drawing number
Order code
53
XPN0005-
Measuring wire, AlloyC, 0.2mm dia., 22m
Drawing number
Order code
53
71273742
Drawing number
Order code
53
71273746
Drawing number
Order code
53
71273744
Calibration weight 50gr, NMS5
Drawing number
Order code
75
71067825
We value your privacy
We use cookies to enhance your browsing experience, collect statistics to optimize site functionality, and deliver tailored advertisements or content.
By selecting "Accept all", you consent to our use of cookies.cookie policy .
Customize
Accept only essential
Accept all
