Raman spectroscopy - advanced optical analysis technology
Boost plant safety, ensure product quality, and optimize operations. Raman spectroscopy measures the composition and molecular structure of your samples from lab-to-process in real time.
Specs at a glance
-
Laser wavelength
785 nm
-
Body and window materials
Body: 316L stainless steel
Window: optical-grade materials -
Hazardous area certifications
ATEX, CSA, IECEx, UKCA, JPEx
Field of application

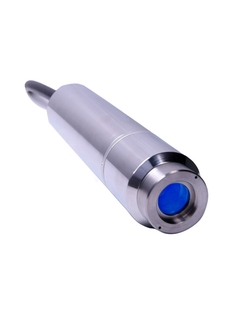

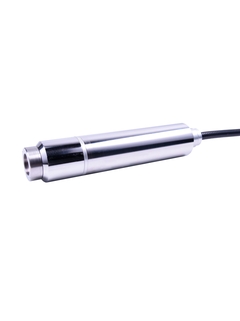

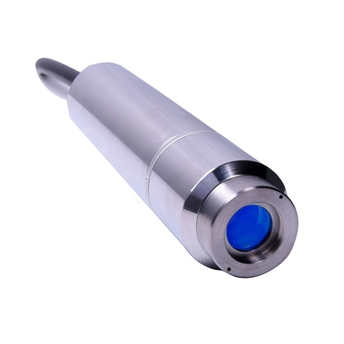

For solids and semi-solids analysis, the Raman Rxn-20 probe reigns supreme. Its state-of-the-art, stainless-steel probe design produces representative, focus-free, quantitative Raman measurements. The Rxn-20 probe illuminates a large surface area and eliminates the need to align the probe for surface roughness. It provides heterogenous solids sampling via volumetric analysis, which is highly useful for measuring tablets, capsules, food solids, and polymer beads.
Chemicals: final product quality, blend impurities, crystallinity, raw materials
Polymers: extruded pellet quality, crystallinity, density, raw materials

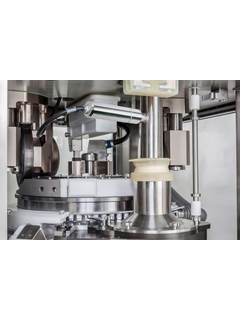

Pharmaceutical: crystallinity, polymorphism, granulation, blend uniformity, content uniformity, coating, tableting
Food & Beverage: quality of dairy solids, meat and fish composition
Benefits
Non-contact measurement of heterogeneous solids for better representation
Improved process control and efficiency through faster measurements
Non-destructive measurements from a distance
Reproducible sampling
Sampling flexibility with a variety of focus-free and immersion Rxn-20 accessory optics
No need to align probe for surface roughness
Surface and deep layer (volumetric) analysis
