RTD Thermometer TSM487

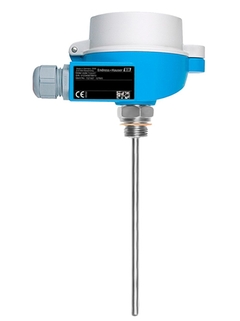

Product picture of resistance thermometer TSM487 ©Endress+Hauser

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Features and specifications

Back

Details

  • Measuring principle

    Resistance Temperature Detector

  • Characteristic / Application

    metric style
    modular temperature assembly
    threaded process connection
    without neck
    transmitter included (fixed range)

  • Thermowell / protection tube

    without (not intended to use with thermowell)

  • Insert / probe

    mineral insulated (MI), flexible

  • Outer diameter protection tube / Insert

    6,0 mm (0,24'')

  • Max. immersion length on request

    up to 250,00 mm (9,84'')

  • Material protection tube/ thermowell

    1.4404 (316L)

  • Process connection

    male thread:
    G1/2"

  • Tip shape

    straight

  • Surface roughness Ra

    Not defined

  • Operating temperature range

    PT 100:
    -30 °C ...200 °C
    (-22 °F ...392 °F)

  • Max. process pressure (static)

    at 20 °C: 20 bar (290 psi)

  • Accuracy

    class A acc. to IEC 60751

  • Response time

    t50 = 4 s
    t90 = 8 s

  • Integration head transmitter

    yes (4 … 20 mA)

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification
    • Order code 51001112

      Spare part set for TMT181/187/188/182

      (4 screws, 6 springs, 10 spring rings)

    • Order code TMT187-

      iTEMP TMT187, Head Transmitter RTD

      Temperature transmitter Application: RTD. 2-wire 4-20mA, galvanic isolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.

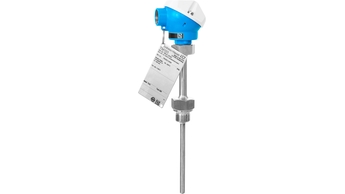

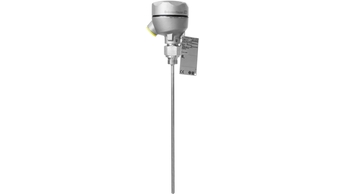

  • Successor
