Specs at a glance
-
Accuracy
class A acc. to IEC 60751
class B acc. to IEC 60751 -
Response time
63% rt = 3 s
-
Max. process pressure (static)
Not applicable
-
Operating temperature range
PT100 WW:
-200 °C … 600 °C
(-328 °F … 1.112 °F)
PT100 TF:
-50 °C … 200 °C
(-58 °F … 392 °F) -
Max. immersion length on request
up to 100" (2540 mm)
others on request
Field of application
The robust device is a unit ready for use within and existing thermowell and includes various housing transmitter heads to meet the application and space requirement needs. The unit offers enhanced measurement accuracy and reliability. A variety of connections, dimensions and materials (like 316L SS and Hastelloy C276) offer flexible application possibilities.

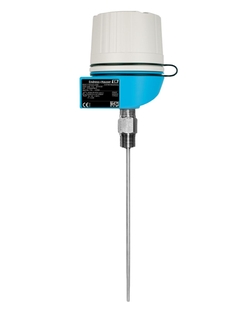

The T15 temperature sensor is a RTD assembly designed for use in harsh environments and explosive areas, due to his FM and CSA approvals.
The sensor is made up of a measurement probe with an insulated RTD element and sheath.
The sensor assembly can be used in process industries such as:
Chemicals
Petrochemical
Refineries
Offshore Platforms
Benefits
FM/CSA XP Class I, Div. 1 approved temperature assemblies for maximum safety
One source shopping for temperature measurement solutions. World class transmitter with integrated sensor offering for heavy process industry applications
Remove and install straight out of the box!
Improved galvanic isolation on most devices (2 kV)
Simplified model structure: Competitively priced, offers great value. Easy to order and reorder. A single model number includes sensor, thermowell and transmitter assembly for a complete point solution
All iTEMP transmitters provide long term stability ≤0.05% per year
Extended selection
-
High-end products
- Highly functional and convenient
Technical excellence
Simplicity
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
| FLEX selections | Technical excellence | Simplicity |
|---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
Loading alternative products
Success stories
6 documents
-
-
Technical Information (TI)
T13, T14 and T15
Explosion proof RTD assemblies in thermowells with spring loaded insert
and enclosure for process industryEN 10/01/202313/01/2021Language:
English
Version:
10/01/2023
File size:
1.4 MB
File name:
TI00126REN_1623-00.pdf
-
-
-
Short Instruction (KA)
T15 Compact Instructions
RTD explosion proof assembly
Language:
English
Version:
04/02/2013
File size:
680 KB
File name:
Ka00238ren_1312.pdf
-
-
-
Ex Safety Instruction (XA)
T15, T55, TU211, TU221
FM:
Control Drawing XP, NI, DIP
160100120Language:
English
Version:
12/04/2019
File size:
69.6 KB
File name:
160100120.pdf
-
-
-
Certificates FM/CSA (ZD)
Control Drawing FM XP, NI, DIP T15, T55, TU211, TU221
Temperature Process RTD Explosion Proof T15, Process TC Explosion
Proof
T55, RTD insert TU211, TC insert TU221
Installation Notesfor Hazardous LocationsLanguage:
English
Version:
24/11/2020
File size:
66.6 KB
File name:
160100120.pdf
-
-
-
Certificates FM/CSA (ZD)
Temperature assemblies T15, T55 Temperature inserts TU221, TU211 Control drawing FM (XP, DIP)
Installation Notes for FM approved apparatus
Language:
English
Version:
01/11/2011
File size:
70.5 KB
File name:
160100119.pdf
-
-
-
Explosion Protection
Product family: Accessories: RTD insert, Accessories: TC insert, Process RTD explosion proof, Process RTD general purpose, Process T C explosion proof
Product root: T13-, T14-, T15-, T53-, T54-, T55-, TM111-, TM112-, TM131-, TM151-, TM152-, TM611-, TU211-, TU221-
Region: Canada/USA
Approval agency: CSA
Category: I/2/A,B,C,D/T6...T1, I/1/A,B,C,D/T6...T1, I/1/B,C,D/T6...T1, II,III/1/E,F,G/Txxx°C
Protection: DIP, NI, XPLanguage:
English
Version:
30/09/2025
File size:
425.7 KB
File name:
CSA1733312_80260575_Ed.13.pdf
-
