Name: Thermocouple TC61
Brand: Endress+Hauser
Availability: InStock

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

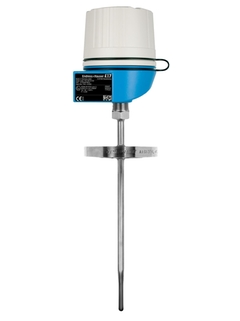

Product picture of thermocouple thermometer TC61

TC61
Explosion-proof thermocouple thermometer

Successor

F

L

E

X

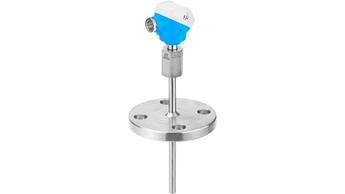

iTHERM ModuLine TM131

Metric RTD/TC thermometer with welded thermowell for a wide range of industrial applications
Read more

Loading price

Prices temporarily unavailable

Price after login

Price on request

activating price

price: provide information
F

L

E

X
iTHERM ModuLine TM121

Fundamental metric RTD/TC thermometer with welded thermowell for a wide range of industrial applications
Read more

Loading price

Prices temporarily unavailable

Price after login

Price on request

activating price

price: provide information

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Characteristic / Application

metric style
modular temperature assembly
for heavy duty applications
suitable for hazardous areas
with neck
incl. thermowell / protection tube (metal)
Thermowell / protection tube

welded protection tube
Insert / probe

mineral insulated (MI), flexible
Outer diameter protection tube / Insert

9,0 mm (0,35'')
11,0 mm (0,43'')
12,0 mm (0,47'')
Max. immersion length on request

up to 10.000,00 mm (393,70'')
Material protection tube/ thermowell

1.4404 (316L)
1.4571 (316Ti)
Alloy 600 (2.4816)
Alloy C276 (2.4819)
Optional coating

Not defined
Process connection

male thread:
G1/2"
G3/4"
G1"
NPT1/2"
NPT3/4"
M20x1,5
compression fitting:
G1/2"
G1"
flange:
DN25 PN40 B1 (EN1092)
DN40 PN40 B1(EN1092)
DN50 PN40 B1 (EN1092)
ASME 1" 150 RF (B16.5)
ASME 1" 300 RF (B16.5)
Tip shape

straight
reduced
tapered
Surface roughness Ra

0,8 μm (31,5 μin.)
Operating temperature range

Type K:
-40 °C ...1.100 °C
(-40 °F ...2.012 °F)
Type J:
-40 °C ...750 °C
(-40 °F ...1.382 °F)
Max. process pressure (static)

at 20 °C: 100 bar (1.450 psi)
Accuracy

class 1 acc. to IEC 60584
Response time

depending on configuration
t50 = 3 s
t90 = 7 s
Integration head transmitter

yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)
Ex - approvals

ATEX
IECEx
NEPSI
EAC
Explosion proof
Certification

Gost Metrology
SIL (transmitter only)

Filter

47 documents

Technical Information (TI)

Technische Information Omnigrad S TC61

Technical Information (TI)

German version - 07/2005

New version available in English

Thermoelement-Thermometer, EEx-d-zertifiziert, austauschbarer
Messeinsatz, verschweißtes Schutzrohr, Prozessanschluss: mit
Gewind

Select other languages, versions and see details Hide selection and details

	EN
01/07/2005

Language:	German
Version:	01/07/2005
File size:	991.3 KB
File name:	TI285Tde_1105.pdf

Share
- Copy Link
- Send Mail
Download

Technical Information (TI)

Omnigrad S TR61, TC61

Technical Information (TI)

English version - 06/2019

New version available in English

Modular thermometer, with optional RTD or TC insert

Select other languages, versions and see details Hide selection and details

	EN
05/06/2019
12/04/2016
12/08/2013
12/06/2012
23/02/2012

Language:	English
Version:	05/06/2019
File size:	957 KB
File name:	TI01029TEN_0519.pdf

Share
- Copy Link
- Send Mail
Download

Ex Safety Instruction (XA)

XA TR1x, TR4x, TR88, TR6x, TC1x, TC88, TEC420, TC6x

Ex Safety Instruction (XA)

English version - 03/2023

New version available in English

RTD/TC thermometers
ATEX/IECEx:
Ex ia IIC T6 Ga
Ex ia IIC T6 Ga/Gb
Ex ia IIIC Txxx °C Da
Ex ia IIIC Txxx °C Db

Select other languages, versions and see details Hide selection and details

	EN
28/03/2023
20/12/2021
03/05/2016
28/11/2012
01/06/2009

Language:	English
Version:	28/03/2023
File size:	450.8 KB
File name:	XA00072REN_1623-00.pdf

Share
- Copy Link
- Send Mail
Download

Ex Safety Instruction (XA)

TR/TC6x

Ex Safety Instruction (XA)

English version - 02/2023

New version available in English

RTD / TC Thermometer
ATEX, IECEx:
Ex db IIC T6 Ga/Gb
Ex db IIC T6 Gb
Ex ta/tb IIIC Txxx °C Da/Db
Ex tb IIIC Txxx °C Db

Select other languages, versions and see details Hide selection and details

	EN
20/02/2023
16/05/2022
11/02/2021
28/11/2016
04/12/2015

Language:	English
Version:	20/02/2023
File size:	471.3 KB
File name:	XA00084REN_0423-00.pdf

Share
- Copy Link
- Send Mail
Download

Ex Safety Instruction (XA)

XA iTHERM TM211, TPx100, TSx310

Ex Safety Instruction (XA)

English version - 03/2023

New version available in English

RTD/TC inserts and cable thermometers
ATEX/IECEx:
Ex ia IIC T6 Ga
Ex ia IIC T6 Ga/Gb
Ex ia IIIC Txxx °C Da

Select other languages, versions and see details Hide selection and details

	EN
30/03/2023
18/07/2022
10/07/2019
28/11/2016
28/11/2012

Language:	English
Version:	30/03/2023
File size:	456.3 KB
File name:	XA00100REN_1823-00.pdf

Share
- Copy Link
- Send Mail
Download

Ex Safety Instruction (XA)

Safety instructions ATEX II1GD or II 1/2 GD

Ex Safety Instruction (XA)

English version - 09/2005

New version available in English

RTD / TC Thermometer
Omnigrad TRxx, TCxx, TSTxxx, TxCxxx
Omniset TPR100, TET10x, TPC100, TEC10x

Select other languages, versions and see details Hide selection and details

	EN
16/09/2005

Language:	English
Version:	16/09/2005
File size:	1 MB
File name:	XA003ta3.pdf

Share
- Copy Link
- Send Mail
Download

Ex Safety Instruction (XA)

XA TR/TC6x

Ex Safety Instruction (XA)

English version - 04/2023

New version available in English

Thermometer
Ex db IIC T1...T6 Gb

Select other languages, versions and see details Hide selection and details

	EN
27/04/2023
31/07/2020

Language:	English
Version:	27/04/2023
File size:	471.5 KB
File name:	XA02108TEN_0223-00.pdf

Share
- Copy Link
- Send Mail
Download

Ex Safety Instruction (XA)

XA TX6x

Ex Safety Instruction (XA)

English version - 07/2024

New version available in English

RTD/TC modular thermometers
1Ex d IIC T6...T1 Gb X
Ga/Gb Ex d IIC T6...T1 X
Ex tb IIIC T85 °C....T450 °C Db X
Ex ta/tb IIIC T85°C...T450 °C Da/Db X

Select other languages, versions and see details Hide selection and details

	EN
09/07/2024
13/03/2020
02/11/2016

Language:	English
Version:	09/07/2024
File size:	460.7 KB
File name:	XA01450TEN_0324-00.pdf

Share
- Copy Link
- Send Mail
Download

Ex Safety Instruction (XA)

TRxx, TCxx, TS211, iTHERM TS111, TM211, TPx100, TSx310, TM1x1, TM411, TM412

Ex Safety Instruction (XA)

English version - 07/2020

New version available in English

Thermometers and inserts
Ex nA IIC T6...T1 Gc

Select other languages, versions and see details Hide selection and details

	EN
31/07/2020

Language:	English
Version:	31/07/2020
File size:	173.5 KB
File name:	XA02111TEN_0120.pdf

Share
- Copy Link
- Send Mail
Download

Ex Safety Instruction (XA)

XA TRxx, TCxx

Ex Safety Instruction (XA)

English version - 07/2024

New version available in English

RTD/TC thermometers
Ga/Gb Ех ia IIC T6…T1 Х
Ех ia IIIC T85 °C…T450 °C Da/Db Х

Select other languages, versions and see details Hide selection and details

	EN
17/07/2024
10/03/2020
02/11/2016

Language:	English
Version:	17/07/2024
File size:	453.6 KB
File name:	XA01459TEN_0324-00.pdf

Share
- Copy Link
- Send Mail
Download

Loading more results

Filter

Search spare parts by number in drawing

- Show drawing (PDF)

60 spare parts & accessories

Gasket spares TA50-GB/NB/HB/PB/BB/CB/DB

further parts

Order code

60011599
Gasket spares TA50-KB/JB/EB/SB/TB

further parts

Order code

60011601
Gasket spares TA50-KP/RP/JP/TP/EP/SP

further parts

Order code

60011602
Fixing kit cpl. TMT8x/7x (european)

further parts

Order code

71044061
Insert TPC100

Sensoric

Drawing number

Order code

A

TPC100-
Insert TPC300

Sensoric

Drawing number

Order code

A

TPC300-
Thermowell TW10

Assembly/armature

Drawing number

Order code

E

TW10-
Thermowell TW11

Assembly/armature

Drawing number

Order code

E

TW11-
Thermowell TW12

Assembly/armature

Drawing number

Order code

E

TW12-
Thermowell TW13

Assembly/armature

Drawing number

Order code

E

TW13-
Compression Fitting TA50

Assembly/armature accessory

Drawing number

Order code

F

TA50-
Terminal head TA21H

Housing/housing accessories

Drawing number

Order code

D

TA21H-
iTEMP TMT85, Transmitter FF

Electronic (sensor)

Drawing number

Order code

B

TMT85-
iTEMP TMT84, Transmitter PA

Electronic (sensor)

Drawing number

Order code

B

TMT84-
iTEMP TMT82, Transmitter HART

Electronic (sensor)

Drawing number

Order code

B

TMT82-
iTEMP TMT85, Transmitter FF

Electronic (sensor)

Drawing number

Order code

B

TMT85-
iTEMP TMT84, Transmitter PA

Electronic (sensor)

Drawing number

Order code

B

TMT84-
iTEMP TMT82, Transmitter HART

Electronic (sensor)

Drawing number

Order code

B

TMT82-
Display Unit Head Transmitter

Electronic (sensor)

Drawing number

Order code

B

TID10-
Readwin 2000 Operation + Read. software

further parts

Order code

READWIN-
Spare parts kit 5xO-Ring 74x3 VMQ 75

further parts

Order code

71182599
Terminal Head TA30H

Housing/housing accessories

Drawing number

Order code

D

TA30H-
iTEMP TMT181, Head Transmitter PCP

Electronic (sensor)

Drawing number

Order code

B

TMT181-
Commubox FXA191

further parts

Order code

FXA191-
Commubox FXA195

further parts

Order code

FXA195-
iTEMP TMT184, headtransmitter PA

Electronic (sensor)

Drawing number

Order code

B

TMT184-
iTEMP TMT182, Head Transmitter HART

Electronic (sensor)

Drawing number

Order code

B

TMT182-
Thermoconductive Paste HSC 340, 100g

Order code

71312729
Thermo-conductive paste FDA-conform 30g

Order code

71249291
Term.block DIN B (42mm) 2 term. Spc 5 pc

Drawing number

Order code

C

71111510
Term.block DIN B (42mm) 4 term. 5 pc

Drawing number

Order code

C

71111514
Configuration Kit TXU10

Order code

TXU10-

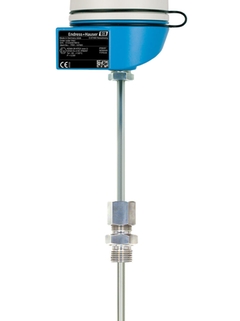

Thermocouple TC61

Successor

iTHERM ModuLine TM131

iTHERM ModuLine TM121

Characteristic / Application

Thermowell / protection tube

Insert / probe

Outer diameter protection tube / Insert

Max. immersion length on request

Material protection tube/ thermowell

Optional coating

Process connection

Tip shape

Surface roughness Ra

Operating temperature range

Max. process pressure (static)

Accuracy

Response time

Integration head transmitter

Ex - approvals

Certification

Back

Technische Information Omnigrad S TC61

Omnigrad S TR61, TC61

XA TR1x, TR4x, TR88, TR6x, TC1x, TC88, TEC420, TC6x

TR/TC6x

XA iTHERM TM211, TPx100, TSx310

Safety instructions ATEX II1GD or II 1/2 GD

XA TR/TC6x

XA TX6x

TRxx, TCxx, TS211, iTHERM TS111, TM211, TPx100, TSx310, TM1x1, TM411, TM412

XA TRxx, TCxx

Back

Gasket spares TA50-GB/NB/HB/PB/BB/CB/DB

Gasket spares TA50-KB/JB/EB/SB/TB

Gasket spares TA50-KP/RP/JP/TP/EP/SP

Fixing kit cpl. TMT8x/7x (european)

Insert TPC100

Insert TPC300

Thermowell TW10

Thermowell TW11

Thermowell TW12

Thermowell TW13

Compression Fitting TA50

Terminal head TA21H

iTEMP TMT85, Transmitter FF

iTEMP TMT84, Transmitter PA

iTEMP TMT82, Transmitter HART

iTEMP TMT85, Transmitter FF

iTEMP TMT84, Transmitter PA

iTEMP TMT82, Transmitter HART

Display Unit Head Transmitter

Readwin 2000 Operation + Read. software

Spare parts kit 5xO-Ring 74x3 VMQ 75

Terminal Head TA30H

iTEMP TMT181, Head Transmitter PCP

Commubox FXA191

Commubox FXA195

iTEMP TMT184, headtransmitter PA

iTEMP TMT182, Head Transmitter HART

Thermoconductive Paste HSC 340, 100g

Thermo-conductive paste FDA-conform 30g

Term.block DIN B (42mm) 2 term. Spc 5 pc

Term.block DIN B (42mm) 4 term. 5 pc

Configuration Kit TXU10

Products & Services

Industries

Support

Company

We value your privacy
